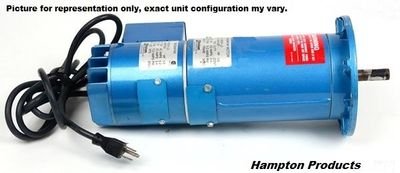

MAGNAPAK MOTORS

• Rated for 1/4 to 1 HP
• One piece construction - motor, controller and operator controls all assembled as one easy to install unit
• On/Off switch, speed potentiometer, and line fuse mounted on operator's control panel
• 150% maximum torque
• ± 1% speed regulation
• 90:1 full torque speed range
• Permanent magnet motors
• 120 or 240 VAC models with broad input voltage range
• C-Face motor mount
• Continuous duty rating
• Totally enclosed, non-ventilated (TENV) and (TEFC) Totally enclosed, fan-cooled versions
• Adjustments for maximum speed, IR compensation, and torque limit
• Easy installation with no wiring between controller and motor
• Factory selected matched components for best performance
• Inexpensive installation, just bolt motor in place and wire to AC line

300-CM0, 1/8 HP, 120V, TENV, No Operator Controls

300-FM0, 1/8 HP, 120V, TENV, No Operator Controls

300-FM1, 1/8 HP, 120V, TENV, No Reversing, With Operator Controls

300-FM1-L, 1/8 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

300-FM2, 1/8 HP, 120V, TENV, Reversing, With Operator Controls, Brake, Cord

300-FM2-L, 1/8 HP, 120V, TENV, Reversing, With Operator Controls, Brake, Cord

301-CM0, 1/4 HP, 120V, TENV, No Operator Controls

301-CM1, 1/4 HP, 120V, TENV, No Reversing, With Operator Controls

301-CM1-L, 1/4 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

301-FM0, 1/4 HP, 120V, TENV, No Operator Controls

301-FM1, 1/4 HP, 120V, TENV, No Reversing, With Operator Controls

301-FM1-L, 1/4 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

301-FM2, 1/4 HP, 120V, TENV, Reversing, Brake

302-CM0, 1/3 HP, 120V, TENV, No Operator Controls

302-CM1, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls

302-CM1-L, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

302-CM1-LD, 1/3 HP, 120V, TENV, Reversing, With Operator Controls and Cord

302-CM2, 1/3 HP, 120V, TENV, Reversing, With Operator Controls, Brake

302-CM2-L, 1/3 HP,  120V TENV, Reversing, With Operator Controls, Brake, and Cord

302-CM2-LD, 1/3 HP, 120V, TENV, Reversing With Operator Controls, Brake and Cord

302-FM0, 1/3 HP, 120V, TENV, No Operator Controls

302-FM1, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls

302-FM1-L, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

302-FM1-LD, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

302-FM2, 1/3 HP, 120V, TENV, Reversing, With Operator Controls, Brake

302-FM2-L, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls, Brake and Cord

302-FM2-LD, 1/3 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

303-CM0, 1/2 HP, 120V, TENV, No Operator Controls

303-CM1, 1/2 HP, 120V, TENV, No Reversing, With Operator Controls

303-CM1-L, 1/2 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

303-CM1-LD, 1/2 HP, 120V, TENV, No Reversing, With Operator and Cord

303-CM2, 1/2 HP, 120V, TENV, Reversing, With Operator Controls, Brake

303-CM2-L, 1/2 HP, 120V, TENV, Reversing, With Operator Controls, Brake and Cord

303-FM0, 1/2 HP, 120V, TENV, No Operator Controls

303-FM1, 1/2 HP, 120V, TENV, No Reversing, With Operator Controls

303-FM1-L, 1/2 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

303-FM2, 1/2 HP, 120V, TENV, Reversing, With Operator Controls, Brake

303-FM2-L, 1/2 HP, 120V, TENV, Reversing, With Operator Controls, Brake and Cord

304-CM0, 3/4 HP, 120V, TENV, No Operator Controls

304-CM1, 3/4 HP, 120V, TENV, No Reversing, With Operator Controls

304-CM1-L, 3/4 HP, 120V, TENV, No Reversing, With Operator Controls

304-FM0, 3/4 HP, 120V, TENV, No Operator Controls

304-FM1, 3/4 HP, 120V, TENV, No Reversing, With Operator Controls

304-FM1-L, 3/4 HP, 120V, TENV, No Reversing, With Operator Controls and Cord

304-FM2-L, 3/4 HP, 120V, TENV, Reversing, With Operator Controls and Cord

311-FM1, 3/4 HP, 240V, TENV, No Reversing, With Operator Controls

312-FM1, 1 HP, 240 Volt, TENV, No Reversing, With Operator Controls
