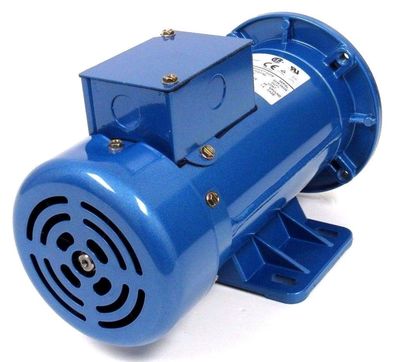

DC PERMANENT MAGNET MOTORS - DC Motors

HAMPTON PRODUCTS COMPANY

ADDITIONAL INFORMATION:


Our permanent magnet DC motors and electric motors are optimized for rapid cycling use with Cycletrol Series DC controls .




Designed to industry-standard NEMA frame sizes

Models rated from 1/8 to 3 HP

Easy access to brushes for quick brush replacement

Non-vented and fan cooled versions

Continuous Duty

Constant Torque

Class F and H insulation

40 Degree C Ambient

Ball Bearings

Removable Base

TENV and TEFC Designs

UL recognized

For use with 120/240 VAC single phase silicon controlled rectifier (SCR) drives

90/180 volt armature motors have 1750/1800 RPM base speed

MOTORS

03201 -N  1/8 HP        03330 -N 1/4 HP

03202 -N 1/8 HP        03331 -N 3/4 HP

03203 -N 1/4 HP        03333 -N 1/8 HP

03204 - N 1/4 HP       03334 -N 1/4 HP

03205 -N 1/3 HP        03335 -N 1/4 HP

03206 -N 1/3 HP        03336 -N 1/3 HP

03207 -N 1/2 HP        03337 -N 1/3 HP

03208 -N 1/2 HP        03338 -N 1/8 HP

03209 -N 1/2 HP        03339 -N 1/4 HP

03210 -N 3/4 HP        03340 -N 1/3 HP

03211 -N  1 HP             03341 -N 1/2 HP

03212 -N 1 HP             03342 -N 3/4 HP

03213 -N 1 HP             03343 -N 1 HP

03214 -N 1 HP             03344 -N 1/2 HP

03215 -N 1 HP             03345 -N 3/4 HP

03216 -N 1 HP             03346 -N  1 HP

03217 -N 1.5 HP          03347 -N 1/4 HP

03218 -N 2 HP            03348 -N 1.5 HP

03219 -N 3 HP            03349 -N 2 HP

03224 -N 3/4 HP        03350 -N  3 HP

03225 - N 1/3 HP        03421 -N 1/8 HP

03228 -N 1/2 HP         03422 -N 1/4 HP

03229 -N 1/2 HP         03423 -N 1/3 HP

03230  -N 1/2 HP        03424 -N 1/2 HP

03231 -N 3/4 HP         03425 -N 3/4 HP

03232 -N 1/8 HP         03426 -N  1 HP

03233 -N 1/8 HP         03427 -N  1/2 HP

03234 -N 1/4 HP         03428 -N  3/4HP

03235 -N 1/4 HP         03429 -N 1 HP

03236 -N  1/3 HP        03430 -N 3/4 HP

03237 -N  1/3 HP        03431 -N 3/4 HP

03262 -N  1 HP           03432 -N 1/2 HP

03263 -N  1.5 HP        04201 -N 3/4 HP

03265 -N 1.5 HP         04202 -N 1 HP

03266 -N 1.5 HP         04203 -N 1 HP (Rear Shaft)

03268  -N 1.5 HP        04204 -N 3/4HP

03269 -N 1.5 HP         04205  -N 1 HP

03270 -N 2 HP           04206 -N 1/2 HP

03271 -N 3 HP            04207 -N 1/2 HP

03272 -N 1 HP            04208 -N 1/2 HP

03273 -N 1.5 HP         04209 -N 1/8 HP

03277 -N 1/2 HP        04210 -N 1/3 HP

03278 -N 1.5 HP         04211 -N 1/3 HP

03279 -N 2 HP           04212 -N 1/2 HP

03280 -N 3 HP

03281 -N 1/8 HP

03282 -N  1/8 HP

03283 -N 1/4 HP

03284 -N 1/4 HP

03285 -N 1/3 HP

03286 -N 1/3 HP

03287 -N 1/2 HP

03288 -N 1/2 HP

03289 -N  1/2 HP

03294-N 3/4 HP

03295 -N 1/8 HP

03296 -N 1/4 HP

03297 -N 1/3 HP

03298 -N  1/2 HP

03299 -N 3/4 HP

03301 -N 1/8 HP

03302 -N 1/8 HP

03303 -N 1/4 HP

03304 -N 1/4 HP

03305 -N 1/3 HP

03306 -N 1/3 HP

03307 -N 1/2 HP

03308 -N 1/2 HP

03309 -N  3/4 HP

03310  -N 3/4 HP

03311 -N 1 HP

03312 -N 1 HP

03316 - N 1 HP

03317 -N 1.5 HP

03318 -N 2 HP

03319 -N 3 HP

03329 -N 1/2 HP
